Kendall DAR Adult - Pediatric Electrostatic Filter HME Large (352U5805)
PLEASE READ THE DESCRIPTION CAREFULLY
Do not order based on the image alone. The image displayed may not represent the specific product you are ordering.

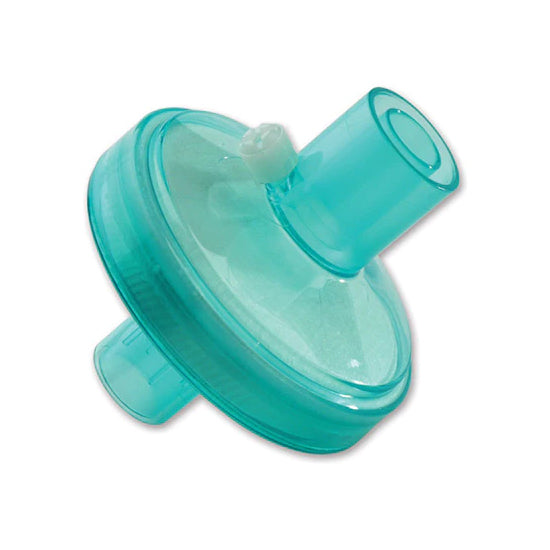

Kendall DAR Adult - Pediatric Electrostatic Filter HME Large (352U5805)

KENDALL HEALTHCARE

  • $13.04

PRODUCT INFORMATION

Product Description

Kendall DAR™ Adult - Pediatric Electrostatic Filter HME Large.

Size: Vт 300 - 1500 ml

Connection: ISO 22M/15F - 22F/15M

Specifications
Recommended tidal volume > 300 ml
MOISTURE OUTPUT AND TEMPERATURE (ISO 9360)
Vt 250 ml Vt 500 ml Vt 1000 ml 2 hours - 33.9 mg H2O/L at 32.0oC 2 hours - 33.3 mg H2O/L at 32.0oC 2 hours - 32.4 mg H2O/L at 32.0oC
RESISTANCE TO FLOW (ISO 9360)
30 L/min 0.9 cm H2O
60 L/min 2.1 cm H2O
90 L/min 3.6 cm H2O
Bacterial filtration efficiency > 99.999%
Viral filtration efficiency > 99.999%
Dead space (connectors included - ISO 9360) 90 ml
Weight 50 g
Type of filtration Electrostatic

DAR™ Adult − Pediatric Electrostatic Filter HME

Hygroscopic membrane traps patient’s moisture providing effective airway humidification.

Features and benefits

  • Combined filter / HME reduces set up time
  • Hygroscopic membrane traps patient’s moisture providing effective airway humidification
  • Low resistance to airflow reduces work of breathing
  • Effective moisture control reduces the risk of colonization in breathing tubes and reduces sampling line blockage
  • End tidal CO2 sampling port offers convenient access to airway gases
  • ISO standard 15 mm and 22 mm fitting connects with breathing system
  • Supplied clean and individually packaged

Indications for usage

  • For adult (recommended tidal volume > 150 ml), single patient use on anesthetized patients and respiratory care patients who require a breathing circuit. The product is intended to be replaced at least once every 24 hours.
