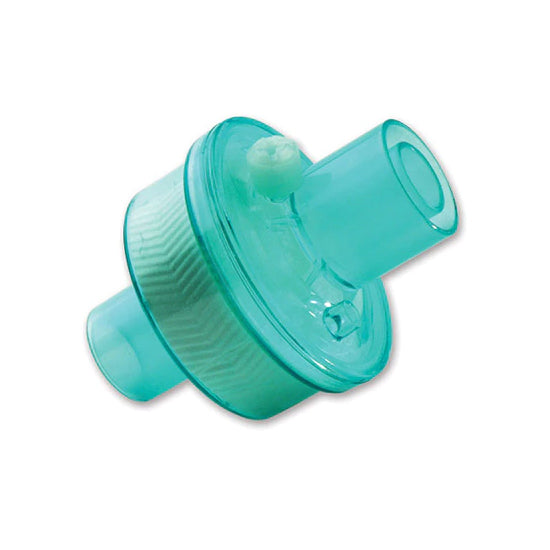

Kendall DAR Adult - Pediatric Electrostatic Filter HME Small (352U5877)
PLEASE READ THE DESCRIPTION CAREFULLY
Do not order based on the image alone. The image displayed may not represent the specific product you are ordering.

Kendall DAR Adult - Pediatric Electrostatic Filter HME Small (352U5877)

KENDALL HEALTHCARE

  • $12.01

PRODUCT INFORMATION

Product Description

Kendall DAR™ Adult - Pediatric Electrostatic Filter HME Small.

Size: Vт 150 - 1200 ml

Connection: ISO 22M/15F - 22F/15M

Specifications
Recommended tidal volume > 150 ml
MOISTURE OUTPUT AND TEMPERATURE AT 2 HOURS (ISO 9360)
Vt 250 ml 34.4 mg H2O/L at 32.5oC
Vt 500 ml 33.6 mg H2O/L at 32.3oC
Vt 750 ml 30.1 mg H2O/L at 30.6oC
Vt 1000 ml 32.9 mg H2O/L at 32.2oC
RESISTANCE TO FLOW (ISO 9360)
30 L/min 1.0 cm H2O
60 L/min 2.8 cm H2O
90 L/min 4.7 cm H2O
Bacterial filtration efficiency > 99.99%
Viral filtration efficiency > 99.99%
Dead space (connectors included - ISO 9360) 51 ml
Weight 28g
Type of filtration Electrostatic

DAR™ Adult − Pediatric Electrostatic Filter HME (Small)

Combined filter / HME reduces set up time, and reduces dead space and weight on endotracheal tube and circuit while increasing efficiency.

Features and benefits

  • Combined filter / HME reduces set up time, and reduces dead space and weight on endotracheal tube and circuit while increasing efficiency
  • Hygroscopic membrane traps patient’s moisture providing effective airway humidification
  • Low resistance to airflow reduces work of breathing
  • Effective moisture control reduces the risk of colonization in breathing tubes and reduces sampling line blockage
  • End tidal CO2 sampling port offers convenient access to airway gases
  • ISO standard 15 mm and 22 mm fitting connects with breathing system
  • Supplied clean and individually packaged

Indications for usage

For adult (recommended tidal volume >150 ml), single patient use on anesthetized patients and respiratory care patients who require a breathing circuit. The product is intended to be replaced at least once every 24 hours.
